# Fluent-bit Azure Forwarder ### How to Forward logs from Apica Ascent to Azure using Fluent-bit #### 1. Introduction This guide explains how to forward logs from Apica Ascent to Azure using the azure output plugin with Fluent-bit, and how to view them. This guide assumes that you have an azure log analytics workspace set up already with a customer or workspace id and a primary or secondary key ready to be used. #### 2. Do any required port forwarding The process will be different for each company, provider and OS. If you manage your firewall at your provider level you will need to allow traffic on the desired port there and possibly on the server itself. If you manage the firewall on the server level you should make the changes there, the methods will be different depending on your OS. In our example we used port 4318. Add a new inbound rule: ``` Type: TCP Port Range: 4318 Source: 0.0.0.0/0 ``` #### 3. Set up an input, filter and output Update your Fluent-bit.conf with an input, (optional) filter and output. In this example we use the [HTTP](https://docs.apica.io/integrations/list-of-integrations/fluent-bit/fluent-bit-http-input-plugin) input plugin, Modify filter and the azure output. ``` [INPUT] Name http Listen 0.0.0.0 Port 4318 Tag ascent_logs ``` ``` [FILTER] Name modify Match ascent_logs Add namespace Fluent-bit Add app_name HTTP ``` ``` [OUTPUT] Name azure Match ascent_logs Customer_ID Shared_Key ``` The shared key is your primary or secondary key. #### 4. Set up a JavaScript code Forwarder 1\. Log in to Apica Ascent 2\. Navigate to **Integrations → Forwarders → Forwarders** 3\. Click on Add Forwarder 4\. Select the JavaScript code Forwarder 5\. Edit the fields to your needs, in this example we use the following: ``` let cfg = { method: "POST", headers: { "Content-Type": "application/json" }, body: JSON.stringify(Events), }; let ret = fetchSync("http://:4318/", cfg); console.log("Response from the endpoint:", ret); ```

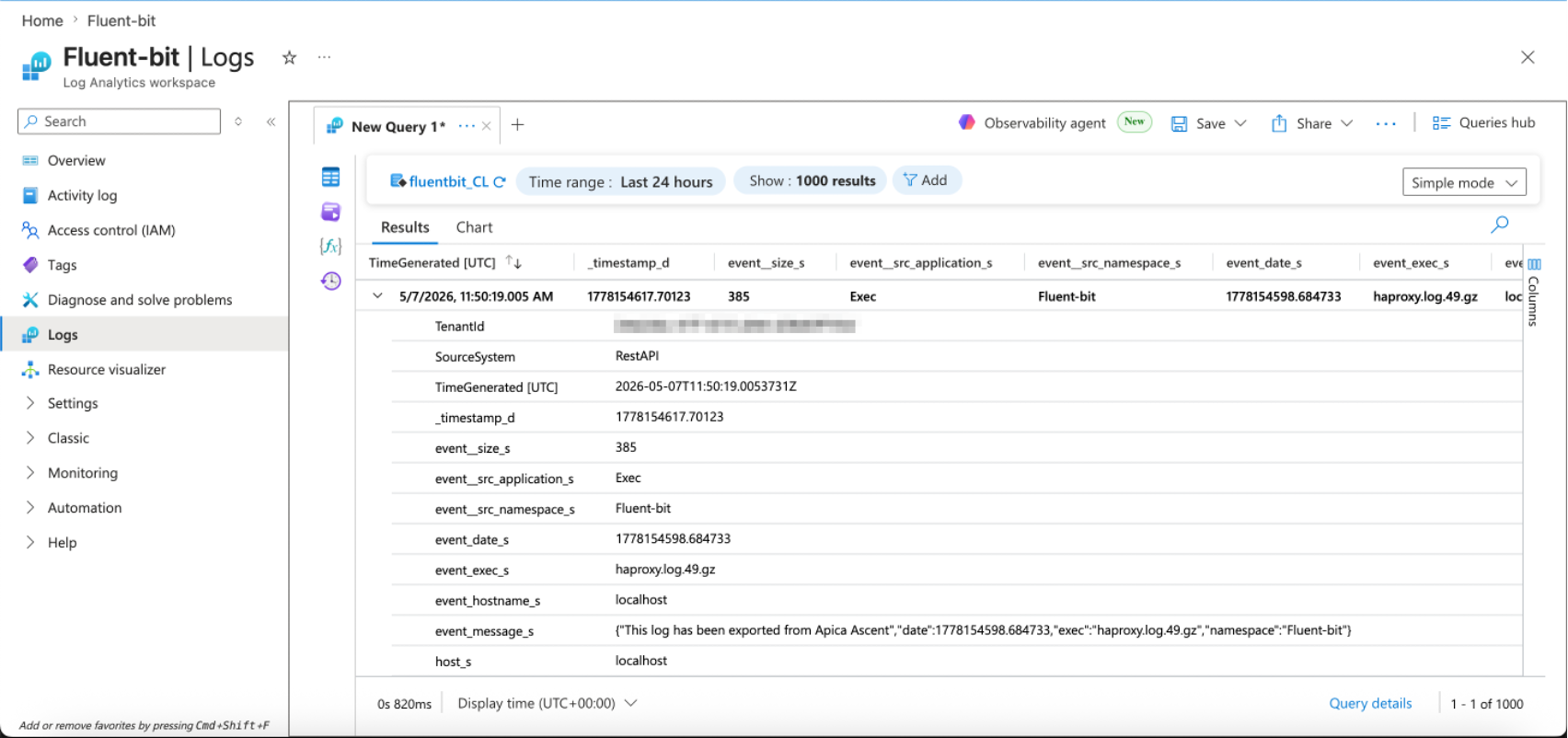

#### 5. Set up pipelines in Apica Ascent to your needs 1\. Log in to Apica Ascent 2\. Navigate to **Explore → Pipelines → Pipelines** 3\. Create one or multiple pipelines (you should use the stream rule if you don’t want all logs in the namespace + application to be forwarded) 4\. Apply the pipelines to the logs that you want to forward #### 6. Map the forwarder that you will use on your logs that you want to forward This can be done in two ways: 1\. This method requires pipelines.\ In the pipelines page hover over the three dots on the right on your pipeline and click on Map Forwarder.\ Select your forwarder (deselect the default forwarder if you only want your new forwarder) and click on OK 2\. This method can be done with or without pipelines.\ Navigate to **Explore → Logs & Insights** Select the logs that you want to forward, hover over the three dots on the right at the top of the list and click on Map Forwarder.\ Select your forwarder (deselect the default forwarder if you only want your new forwarder) and click on OK #### 7. Verify that your logs arrive at the end destination 1\. Navigate to your Azure environment 2\. Go to your log analytics workspace 3\. Click on Logs on the left side 4\. Close the popup and click on the Tables button 5\. Expand Custom Logs (logs might not show up right away, you may need to wait and refresh the page) 6\. Hover over your fluent-bit logs and click on then to run a query Example logs:
#### 8. Troubleshooting [Fluent-bit Troubleshooting](https://docs.apica.io/integrations/list-of-integrations/fluent-bit/fluent-bit-troubleshooting) If logs are not being sent verify that the port is open and that the server can receive data there. Verify that the logs are in a format that the HTTP plugin can read such as json. Verify that the following are correct: * Customer or workspace id * Shared\_key (primary or secondary key) If you haven’t generated you shared key yet you can do that with the following command with Azure CLI: ``` ╰─ az monitor log-analytics workspace get-shared-keys \ --resource-group \ --workspace-name ``` --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.apica.io/flow/list-of-forwarders/fluent-bit-forwarding/fluent-bit-azure-forwarder.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
